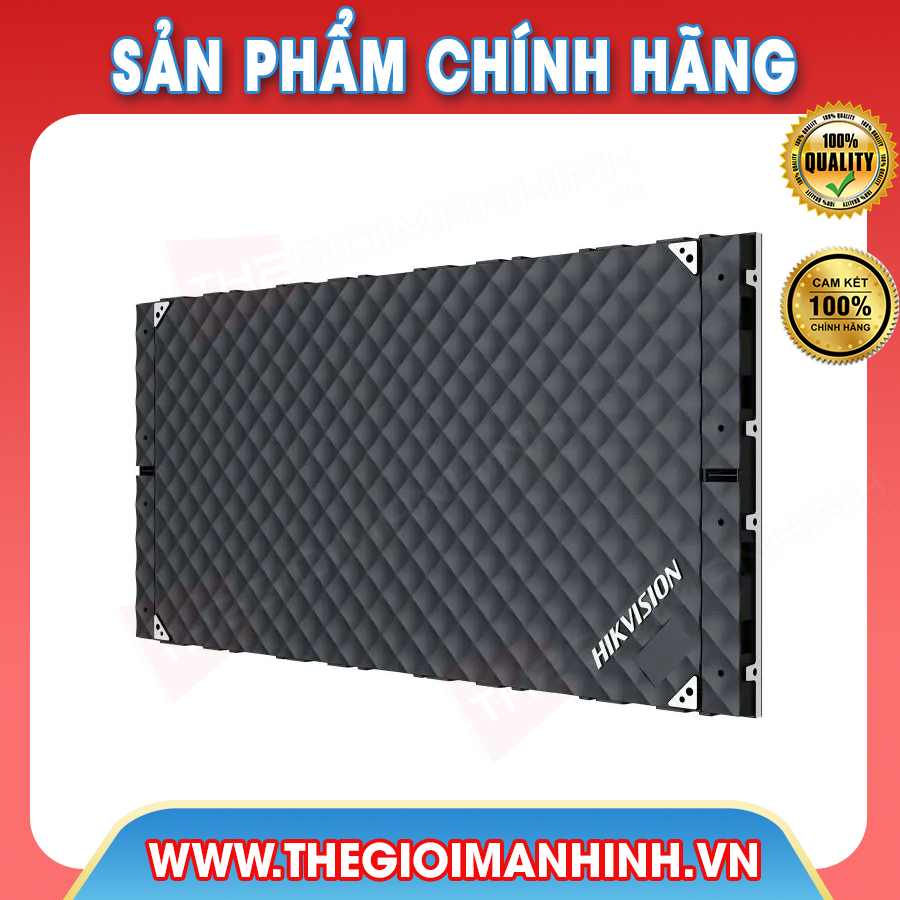

Màn hình LED Hikvision P1.9 DS-D4219FI-CGFF

Thông số kỹ thuật

Cabinet

Pixel Configuration: SMD Triad LED

Pixel Pitch Category: P1.9

Pixel Pitch: 1.9531 mm (0.117″)

Modules Component: 2 × 4

Dimensions (W × H × D): 1000 mm × 500 mm × 50 mm (39.37″ × 19.685″ × 1.969″)

Resolution: 512 × 256

Area: 0.5 m²

Weight: 10.54 Kg (23.237 lb)

Pixel Density: 262144 dots/m²

Lamp Board Housing: With housing

Cabinet Material: Aluminum die casting

Maintenance Method: Front maintenance for all components

Cabinet Flatness: 0.1 mm (0.0039″)

Protection Level: Front protection level IP60

Display

White Balance Brightness: 800 cd/m² (Peak 1000 cd/m²)

Color Temperature: 3000 K to 10000 K adjustable

Viewing Angle: Horizontal 160°, vertical 160°

Contrast Ratio: ≥ 5000:1

Color Uniformity: ≤ ± 0.003Cx，Cy

Brightness Uniformity: ≥ 97％

Processing Performance

Driving Method: Constant current driving

Frame Frequency: 60 Hz

Refresh Rate: Up to 3840 Hz

Grey Level: Up to 18 bit

Display Color: 281 trillion

Power

Power Supply: 110~220 VAC ± 15%

Max. Consumption: ≤ 600 W/m²

Average Consumption: < 185 W/m²

Working Environment

Working Temperature: -10-40 ℃

Working Humidity: 10%~80%RH

Storage Humidity: 10%~80%RH

Storage Temperature: -20~60 ℃

General

Gross Weight: 123.6 KG (272.491 lb)

Package Dimension (W × H × D): 1333 mm × 890 mm × 744 mm (52.48″ × 35.039″ × 29.291″) (Wooden Box，6 cabinets in 1 box)

Lifespan: Lamp 100,000 hours
