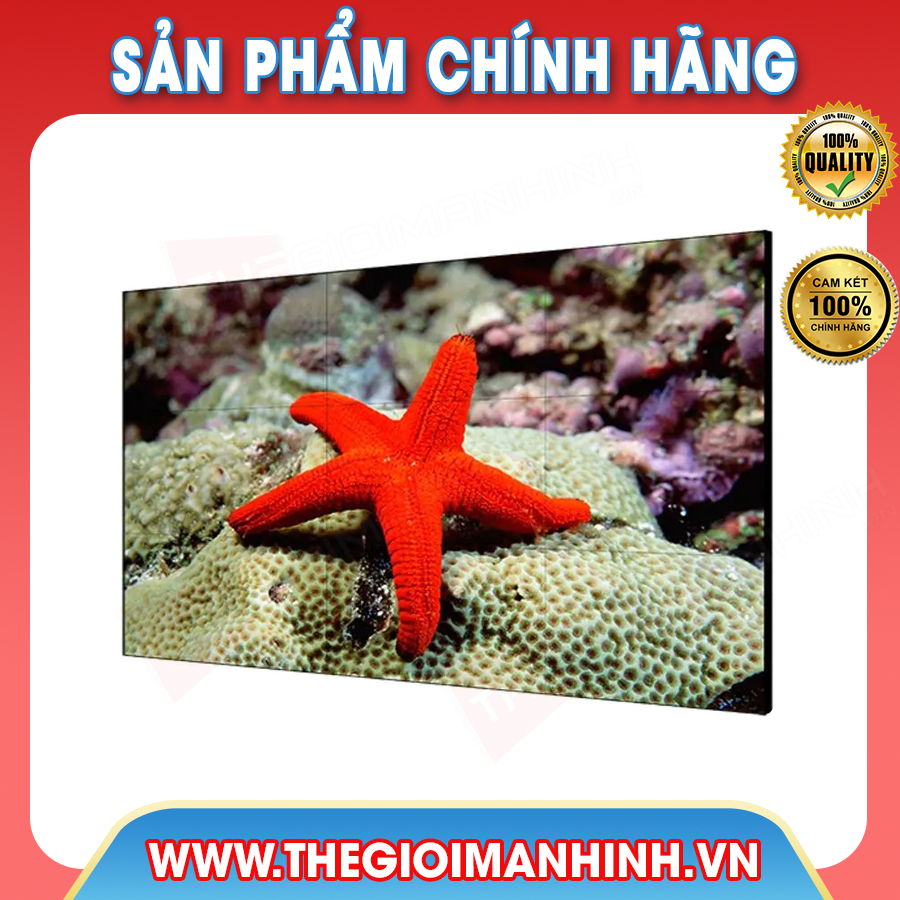

Màn hình ghép Hikvision 46 inch viền 3.5mm DS-D2046LU-Y

Thông số kỹ thuật

Display

– Screen Size: 46 inch

– Active Display Area: 1018.08 (H) mm × 572.67 (V) mm

– Backlight: Direct-lit LED backlight

– Pixel Pitch: 0.53 mm

– Physical Seam: 3.5 mm

– Bezel Width: 2.3 mm (top/left), 1.2 mm (bottom/right)

– Resolution: 1920 × 1080@60 Hz (downward compatible)

– Brightness: 500 cd/m²

– Viewing Angle: Horizontal 178°, vertical 178°

– Color Depth: 8 bit, 16.7 M

– Contrast Ratio: 1200:1

– Response Time: 8 ms

– Color Gamut: 72% NTSC

– Surface Treatment: Haze 25%, 3H

Interface

– Video & Audio Input: VGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1

– Video & Audio Output: HDMI × 1

– Control Interface: RS232 IN × 1, RS232 OUT × 1

Power

– Power Supply: 100-240 VAC, 50/60 Hz

– Power Consumption: ≤ 111 W

– Standby Consumption: ≤ 0.5 W

Working Environment

– Working Temperature: 0°C to 40°C (32°F to 104°F)

– Working Humidity: 10% to 80% RH (non-condensing)

– Storage Temperature: -20°C to 60°C (-4°F to 140°F)

– Storage Humidity: 10% to 80% RH (non-condensing)

General

– Casing Material: SECC

– VESA: 600 (H) mm × 400 (V) mm

– Product Dimension (W × H × D): 1021.98 mm × 576.57 mm × 72.25 mm (40.24” × 22.7” × 2.84”)

– Package Dimension (W × H × D): Carton with two displays: 1214 mm × 783 mm × 414 mm (47.8” × 30.83” × 16.3”); Carton with a single display: 1214 mm × 783 mm × 414 mm (47.8” × 30.83” × 16.3”)

– Net Weight: 19.8 ± 0.5 kg (43.65 ± 1.1 lb) for single display

– Gross Weight: Carton with two displays: 48.5 ± 0.5 kg (106.92 ± 1.1 lb); Carton with a single display: 24.42 ± 0.5 kg (53.84 ± 1.1 lb)

– Packing List: Carton with two displays : LCD display × 2, power cable × 2, network cable × 2, 2-meter HDMI cable × 2, screw × 8, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
